OFFSHORE CRANE BLOCK SINGLE SHEAVE

• WLL: from 80t to 500t.

• Hook: Single or Ramshorn. Forged and heat treated fully machined with nut & crosshead. Max size: 125 acc to DIN15400. Material grades: alloy (T/V). Further hook sizes upon request.

• Sheave: 1 (2 falls). Solid sheave.

• Bearing: axial for hook assembly + roller/sphericalroller for sheaves. Bronze bushing fully recommended.

• Coating Protection: fully painted inside & outside for offshore environment.

• Sealings: for offshore topsite and subsea lifting.

• Certificate: EN10204-2.1. Load Test & FAT upon request




"Il Titolare non si assume alcuna responsabilità nei confronti degli utenti naviganti del sito in merito al contenuto di quanto pubblicato sul sito stesso (accuratezza e completezza delle informazioni fornite o riguardo un eventuale uso che terzi ne potranno fare). Il materiale e le suddette informazioni comprese nel sito sono soggette a cambiamenti o aggiornamenti, apportabili in qualsiasi momento, da parte del Titolare."

"The Owner assumes no responsibility towards users navigating his site with regard to the content published on the site itself (accuracy and completeness of the information provided or regarding any use that third parties may make of it). All the material and the aforementioned information included in this site are subject to changes or updates, which can be carried out at any time by the same Owner."

Italiano

Recensioni per OFFSHORE CRANE BLOCK SINGLE SHEAVE

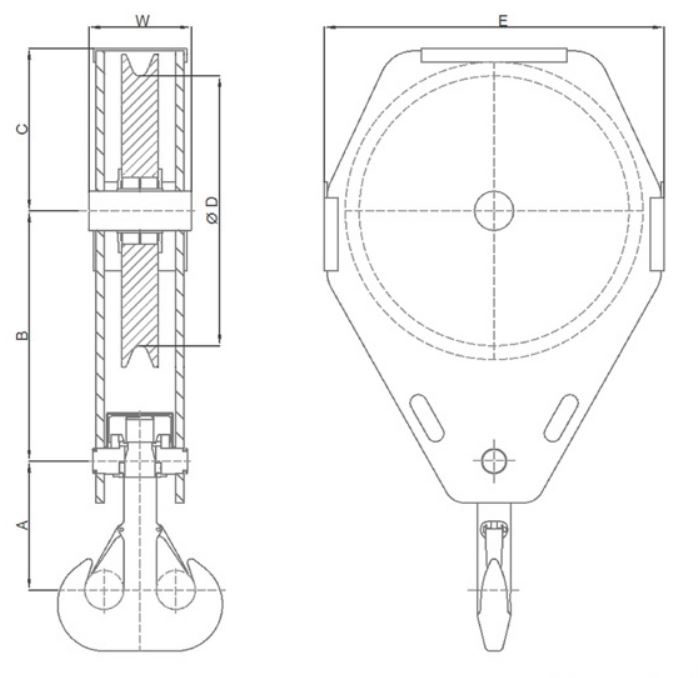

OFFSHORE CRANEBLOCK 1 SHEAVE
