Special lifting clamp for handling and vertical in-position lifting of beams

Application:

•    For vertical lifting, transportation and stacking of steel (H) beams, profiles and structures where the load must stay perfectly in position
•    Especially  recommended for  transportation and stacking of steel (H) beams (e .g .  when sawing
of steel beams, stacking of steel beams and building of steel constructions)
•    Jaw openings available from: 0 to 25 mm
•    Working load limit  (WLL) 1000 - 3000 kg .  Min .  WLL is 10%  of Note: The plate surface of the material must have a hardness level max. HRC 37/345 Hb

Features and Benefits:

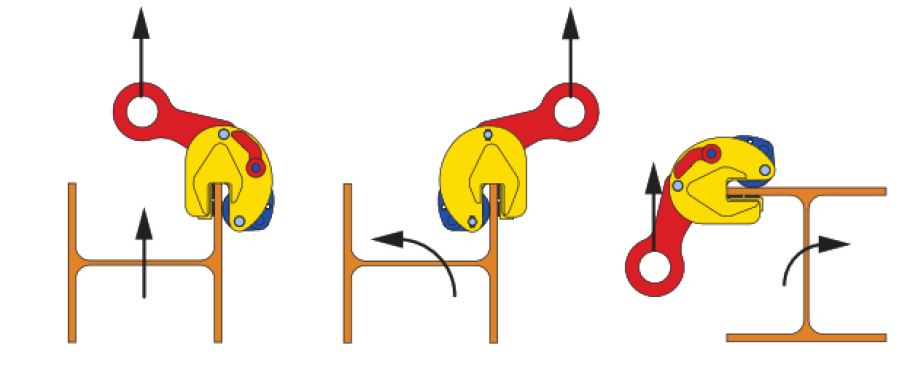

•    Special  lifting shackle shape which places the gravity centre of the beam or load directly beneath the lifting shackle
•    While  lifting the equilibrium of the beam is maintained and keeps the flanges vertical so the beam can  easily be stacked or positioned
•    Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
•    Clamp  is locked in closed as well  as open position
•    Lightweight design for  easy handling
•    Tough quality heavy duty welded shell body
