PINZA TERRIER FSV BEAM LIFTING

Beam Lifting

Multi purpose beam screw clamp

Application:

•    For horizontal lifting and transportation of steel (H) beams, profiles and structures
•    Can be used as upside down attached (temporary) lifting point

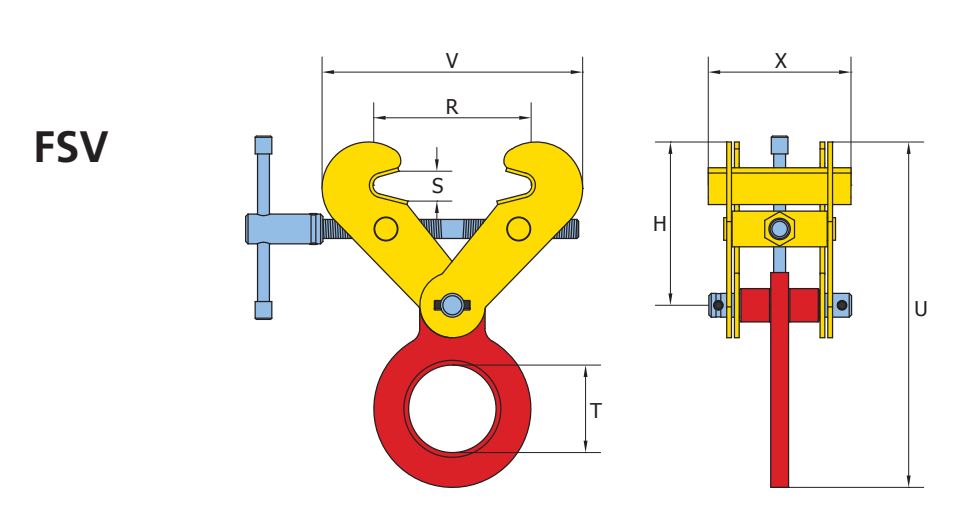

•    FSV Jaw openings available from: 75 to 450 mm

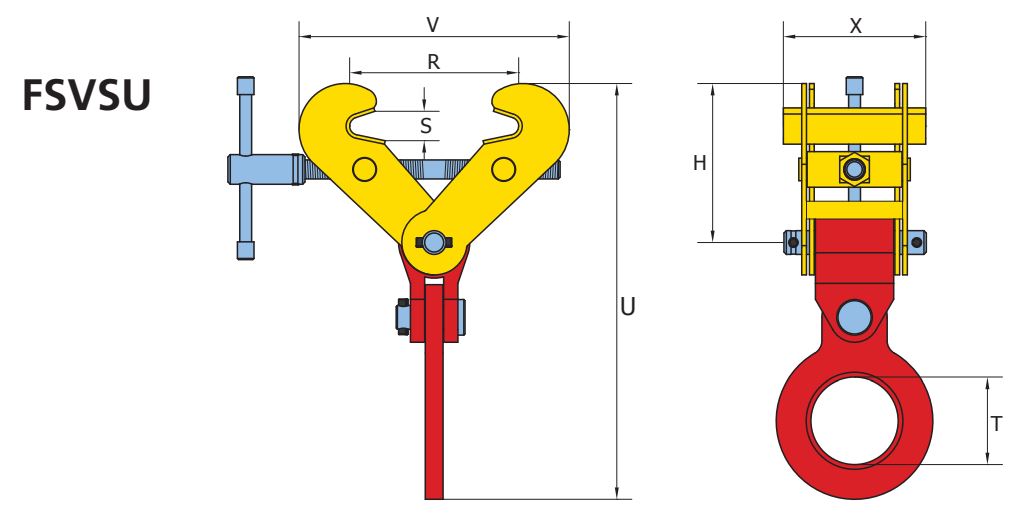

•    FSVS / FSVSU types are  supplied with enlarged jaw opening:
75 to 560 mm
•    FSV Working load limit  (WLL) 1000 - 10000  kg .  (Higher WLL available upon request)
•    FSVS / FSVSU Working load limit  (WLL) up to 5000 kg

Features and Benefits:

•    Special  design makes it possible to lift steel (H) beams and structures
•    Equal  opening and closing of both jaws for  simple and quick  assembly
•    Welded jaw plates for  better positioning and less damaging of load
•    FSVSU types are  supplied with reinforced body and articulated lifting shackle
•    Lightweight, maintenance-friendly, heavy duty body
