PINZA TERRIER TCK VERTICAL LIFTING

Safe and easy square tube frame lifting

Application:
•    For vertical lifting and transporting of structures where a square tube is used as a frame.
•    Jaw openings available from: 62 to 70 mm
Note: The plate surface of the material must have a hardness level of max. HRC 37/345 Hb

Features and Benefits:
•    Because of the compact design of the clamp, the clamp will not use more space than the dimensions of the square tube

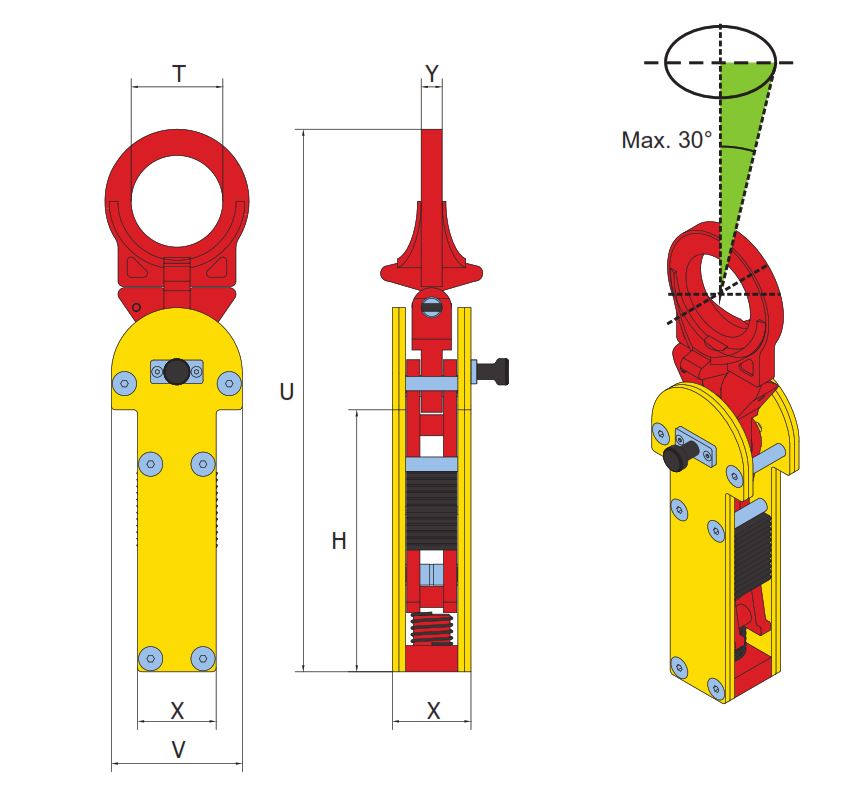

•    Equipped with articulated lifting shackle for  extra lifting flexibility (max 30º)
•    Standard with 2 high grip  pivots for  extra powerful clamping force
•    Special  locking devise ensuring safe  and easy handling
•    Lightweight design for easy handling
