PINZA TERRIER TS-R - TSE-R - TSU-R - TSEU-R VERTICAL LIFTING

Vertical Lifting

Specially made for stainless steel lifting

Application:
•    For vertical lifting, transporting and turning of stainless steel plates and structures
•    Jaw openings available from: 0 to 55 mm
•    Working load limit  (WLL) 750 - 7500 kg

Features and Benefits:
•    Pivot and cam are  made of stainless steel
•    Body and lock lever  are  nickel  plated to prevent corrosion due to carbon contamination
•    TSU-R / TSEU-R come with articulated lifting shackle for  universal lifting flexibility at various angles
•    TS-R / TSE-R come with standard lifting shackle
•    Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
•    Clamp  is locked in closed as well  as open position
•    Lightweight design for  easy handling
•    Tough quality heavy duty welded shell body
•    Maintenance-friendly, easy to exchange parts which are  available upon request



Torna indietro alla lista prodotti / Back to the Product List Torna indietro alla categoria / Back to Category

CONTATTACI PER RICHIEDERE MAGGIORI INFORMAZIONI SU QUESTO PRODOTTO / CONTACT US FOR MORE INFORMATIONS ABOUT THIS PRODUCT

"Il Titolare non si assume alcuna responsabilità nei confronti degli utenti naviganti del sito in merito al contenuto di quanto pubblicato sul sito stesso (accuratezza e completezza delle informazioni fornite o riguardo un eventuale uso che terzi ne potranno fare). Il materiale e le suddette informazioni comprese nel sito sono soggette a cambiamenti o aggiornamenti, apportabili in qualsiasi momento, da parte del Titolare."

"The Owner assumes no responsibility towards users navigating his site with regard to the content published on the site itself (accuracy and completeness of the information provided or regarding any use that third parties may make of it). All the material and the aforementioned information included in this site are subject to changes or updates, which can be carried out at any time by the same Owner."

Italiano

Recensioni per PINZA TERRIER TS-R - TSE-R - TSU-R - TSEU-R VERTICAL LIFTING

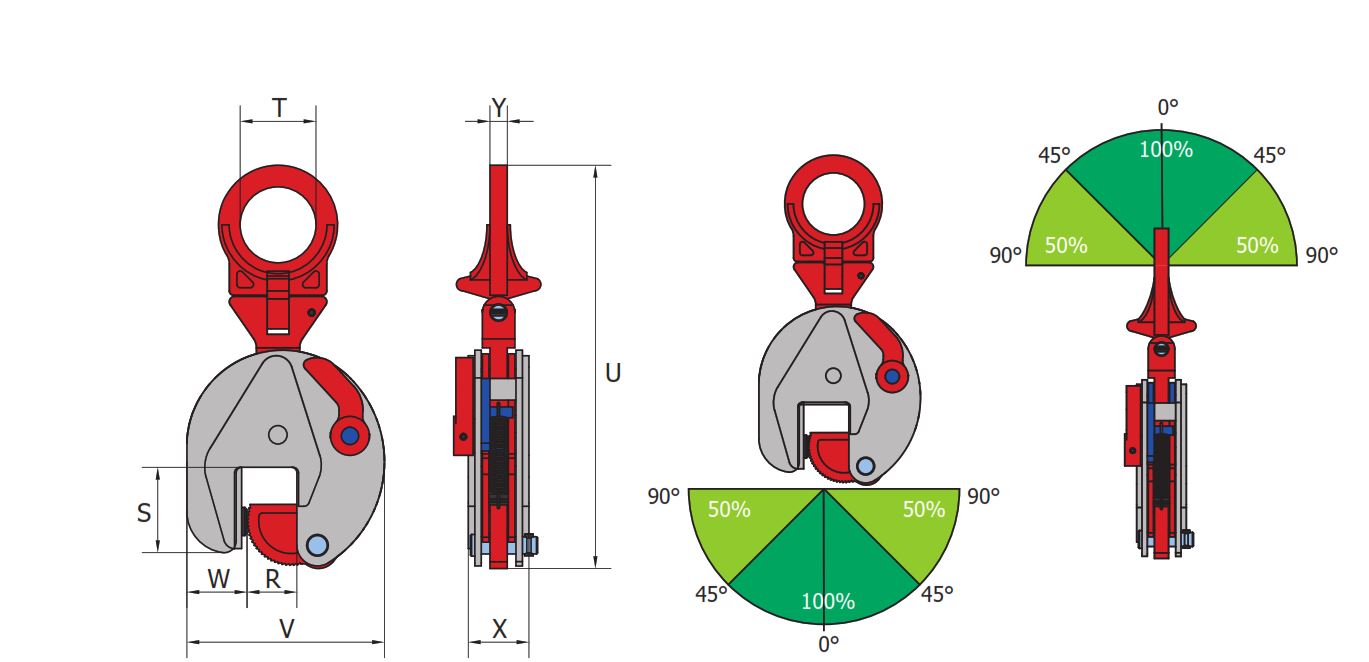

TSR TSER TSUR TSEUR VERTICAL LIFTING
