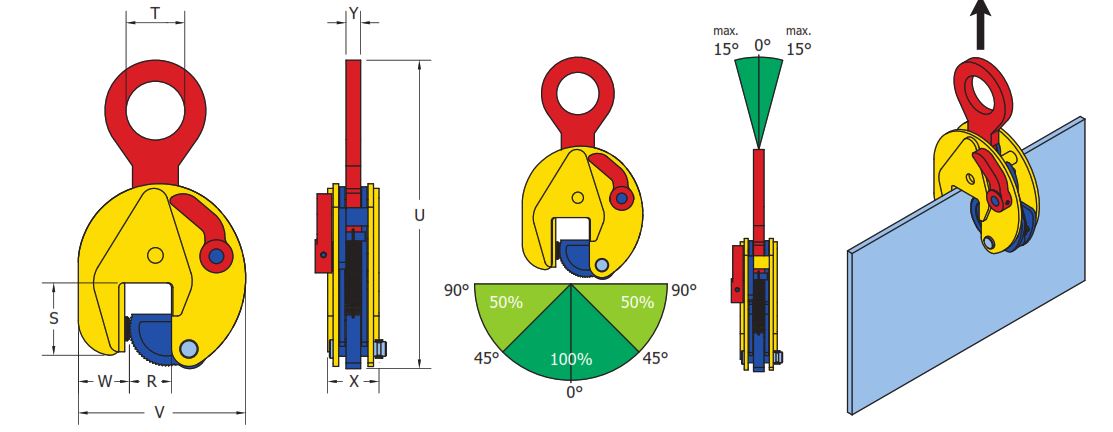

PINZA TERRIER TS - TSE - STS VERTICAL LIFTING

Heavy duty lightweight vertical lifting clamp

Application:
•    For vertical lifting, transporting and turning of all steel plates and structures
•    Jaw openings available from: 0 to 150 mm
•    TSE/STS types are  supplied with enlarged jaw-opening
•    Working load limit  (WLL) 750 - 30000  kg (Higher WLL available upon request)

Note: The plate surface of the material must have a hardness level of max. HRC 37/345

Features and Benefits:
•    Lightweight design for  easy handling
•    Tough quality heavy duty welded shell body
•    Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
•    Clamp  is locked in closed as well  as open position
•    Maintenance-friendly, easy to exchange parts which are  available upon request
