Universal heavy duty clamp with adjustable extra large jaw opening
Application:
• For vertical lifting, transporting and turning of all steel plates and structures from all positions
• Adjustable Jaw opening from: 0 to 95 mm
• 3 different jaw positions, Adjustable by steps of 30 mm
• Working load limit (WLL) 3000 kg
Features and Benefits:
• Only 1 clamp needed for different kind of jobs
• Also the same clamp can be used if a big jaw opening is necessary
• With articulated lifting shackle for universal lifting flexibility at various angles

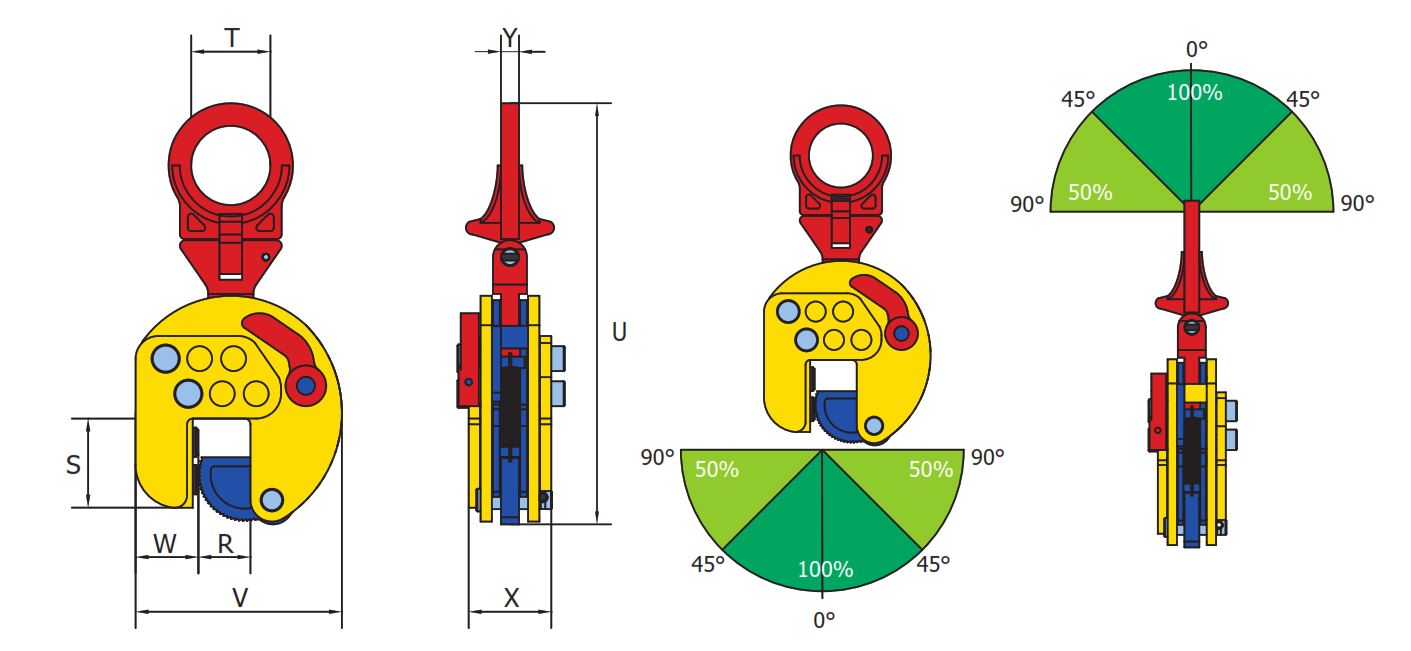

• The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees
• Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
• Standard with 2 pivots for extra clamping force
• Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Lightweight design for easy handling
• Tough quality heavy duty welded shell body
• Maintenance-friendly, easy to exchange parts which are available upon request
