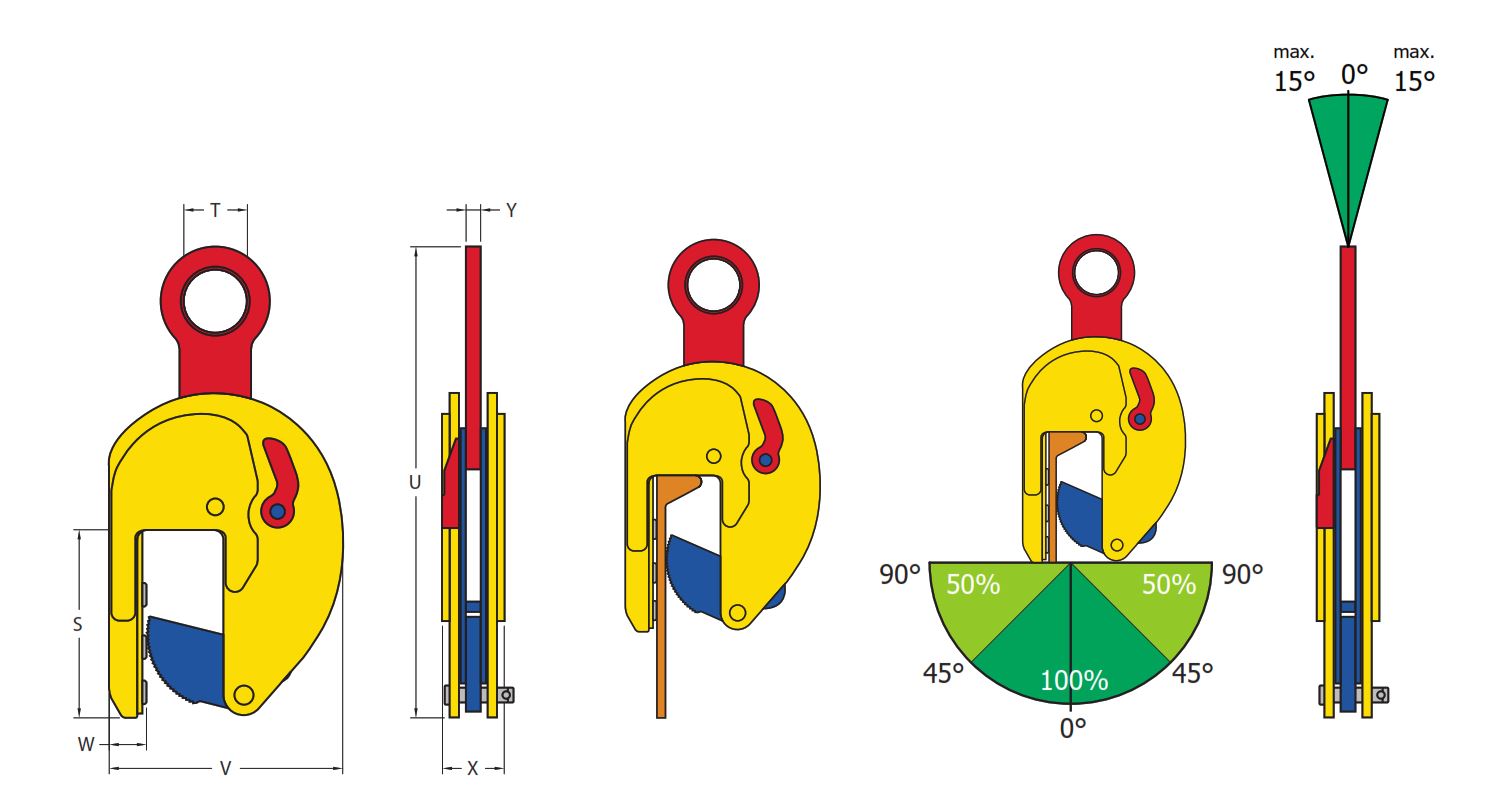

SCARICA SCHEDA TECNICA / DOWNLOAD DATA SHEET (314.91 KB)Lightweight clamp with extra large jaw opening
Application:
• For vertical lifting, handling and transporting of Holland Profile (HP), shipbuilding structures, steel plates and structures
• Turning lathe clamp
• TSHP jaw opening from 0 to 80 mm
• TSHP-A adjustable jaw opening available from: 0 to 155 mm
• TSHP / TSHP-A Working load limit (WLL) 1000 - 1500 kg
• Higher WLL available upon request
• Lifting of longer sections should be done with a spreader beam
Note: The plate surface of the material must have a hardness level of max. HRC 37/345 Hb
Features and Benefits:
• Also useful as a “big-jaw” opening clamp
• Standard with 3 pivots for extra powerful clamping force
• Easy handling of workpieces in and out of lathe due to extra small W-dimensions
• Lightweight design for easy handling
• Tough quality heavy duty welded shell body
• Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Maintenance-friendly, easy to exchange parts which are available upon request
