Lightweight Holland Profile (HP) clamp for universal lifting

Application:
•    For vertical lifting, handling and transporting of Holland Profile (HP), shipbuilding structures from all positions
•    Jaw openings available from: 0 to 45 mm
•    Working load limit  (WLL) 3000 – 5000 kg
•    Higher WLL available upon request
•    Lifting  of longer sections should be done with a spreader beam
Note: The plate surface of the material must have a hardness level of max. HRC 37/345 Hb

Features and Benefits:

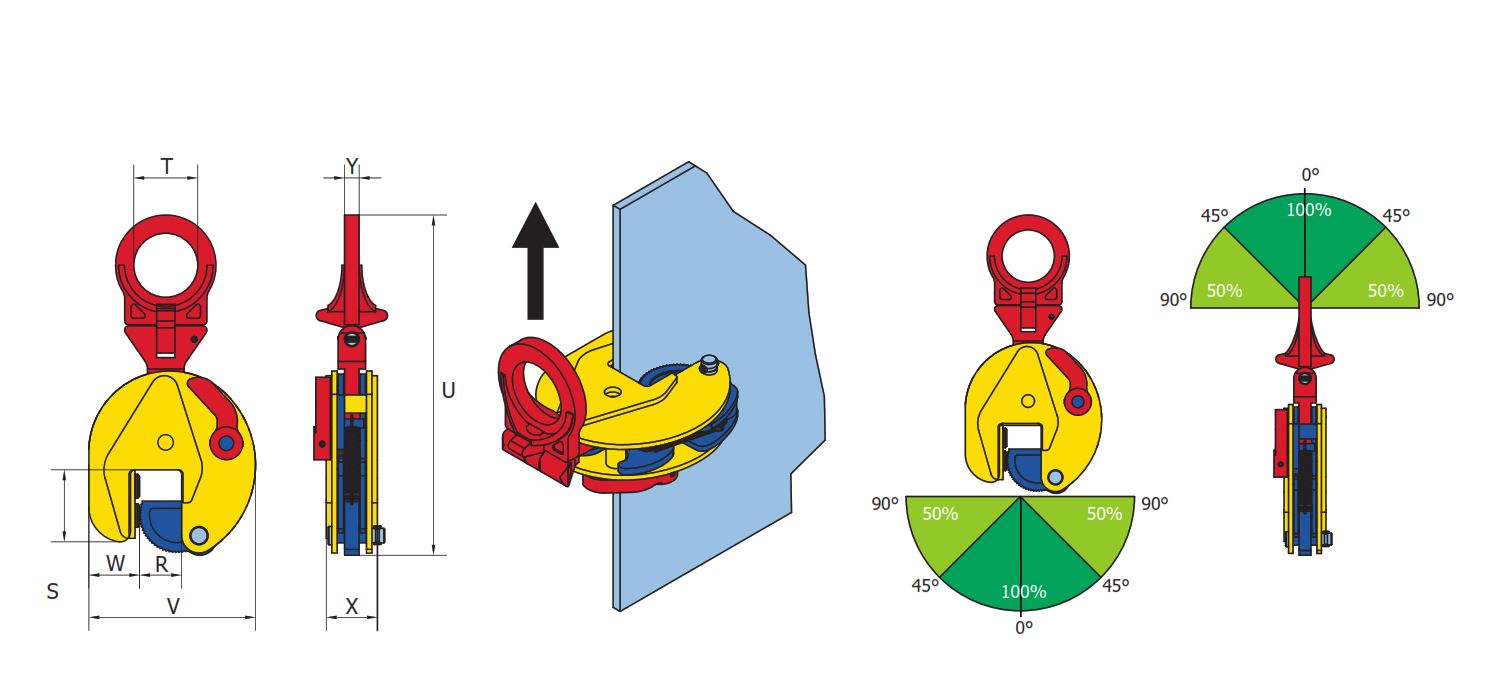

•    With  articulated lifting shackle for  universal lifting flexibility at various angles
•    The articulated lifting shackle guarantees a pressure grip  in every  position, even when side loading up to 90 degrees
•    Standard with 2 pivots for  extra powerful clamping force
•    Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
•    Clamp  is locked in closed as well  as open position
•    Lightweight design for easy handling
•    Tough quality heavy duty welded shell body
•    Maintenance-friendly, easy to exchange parts which are available upon request
