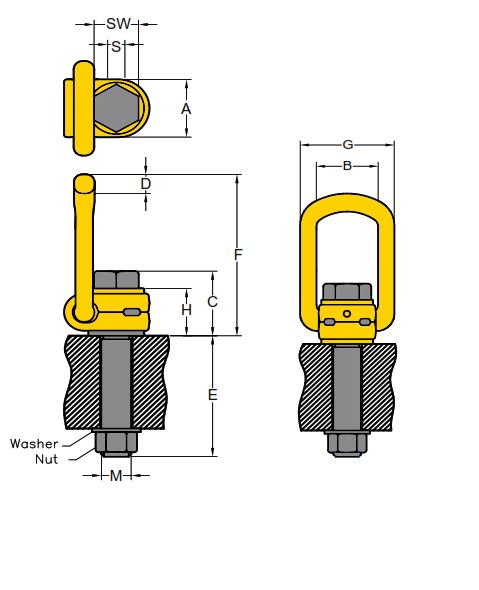

GOLFARE GIREVOLE A STAFFA 8-211L VITE LUNGA

Main Features:

- Rotates through 360° and pivots 90°
- Manufactured from alloy steel, quenched and tempered
- Manufactured and tested in accordance with EN1677-1
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts and cap screw are traceable to Test Certification
- Bolts are Metric thread (ASME/ANSI B 18.3.1M) specification is alloy socket head screw pin per DIN EN ISO 4762
- Proof tested to 2.5 times the WLL
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required

- Taiwan Patent
- China Patent
