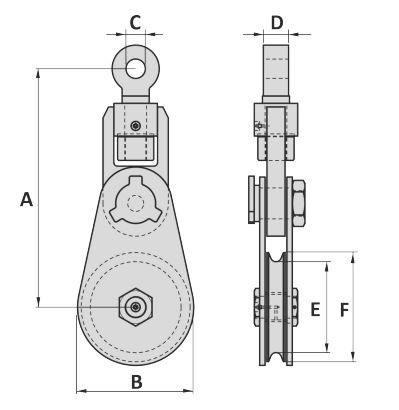

HEAVY TYPE SNATCH BLOCK

Blocks and Cords

A Snatchblock is constructed in such a way that reeving is easy, because one of the side plates can be opened. Any end connection of the wire will therefore not have to be taken off. The eye of the Snatchblock fits on the standard D-shackle or bow shackle.

The heavy duty models of our Snatchblocks are available with a sheave diameter of 6 to 46 inches and a wire diameter of between 22 and 93 mm. Due to the heavy duty construction, they are very suitable for e.g. offshore operations. Our Snatchblocks are also available with the accompanying shackle included.

Material: Mild steel
Safety Factor: 4 times
Finish: Painted RAL 5013
Temperature Range: -20°C up to +180°C  / -4°F up to 356 °F
Standard Certificates: Certificate of Conformity, 3.1 Material Certificate EN 10204

Groove size can be modified on request for customized rope sizes.

Key features
Swiveling stud-eye
Can be opened (one sided)
Standard sizes available from stock
Any size available on request
