MASTERLINK YOKE GR.100 MOD.X-007

 - Quenched and Tempered Alloy Steel

- At least 25% greater WLL than traditional G80 products

- Manufactured in accordance with ASTM A906/A906M, ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184, DIN PAS1061

- Certified by DGUV GS-OA-15-05

- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

- Design Factor 5:1

- Fatigue rated to 20,000 cycles at 1.5 times the WLL

- Tempering temperature at a minimum of 400°C

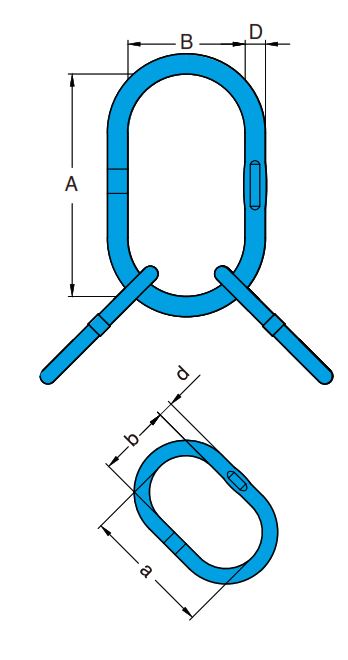

- Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings

- Each link is marked with batch number that links to the test certificate with full tracebility to raw materials
